Threaded ends, studs, stud bolts, turnbuckles, carriage bolts

Industries we serve

Although we serve all conceivable industries, we are, in particular, dedicated to extreme seals and specials, so our primary markets are in sustainable energy, offshore, shipbuilding, swimming pools, installation and technology.

Industries we serve

The connecting of two constructions is the common function of all the components within this group. Threaded ends, studs and stud bolts can have an impressive length of several metres.

Properties of threaded ends, studs, stud bolts and turnbuckles

We can supply threaded ends and studs in the quality Classes 4.6, 8.8, 10.9 and 12.9. Whereas threaded ends are threaded throughout, studs are only threaded at the end. A stud may be screwed into an engine block, for example, after which another part is mounted on it and secured with a nut.

Threaded ends are often cast into concrete at one end; the construction is then installed onto the protruding section and secured with a nut.

Stud bolts are threaded ends with 2 nuts. They may be used, for example, to connect 2 flanges in a pipeline carrying gas or water. In point of fact, stud bolts are threaded ends in an upgraded quality, such as B7, A320 or B8. Dedicated threaded ends are frequently used in the US and UK and for specific applications, particularly in refineries.

Turnbuckles are used to pull constructions towards one another; they come in a single quality and several types of processing.

Threaded ends and studs are available in the range from M3 to M200
We supply quality Classes 4.6, 8.8, 10.9 and 12.9
Available in: brass, steel, stainless steel and special s/s varieties
Processing: untreated, Geomet, hot galvanised and PTFE-coated

Examples of Threaded ends, studs, stud bolts, turnbuckles, carriage bolts

Swing bolt

DIN 444

Eye bolt

DIN 580

Stud 1D

DIN 938

DIN 939 1,25D

DIN 939

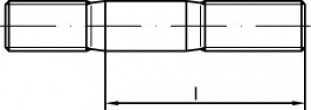

Stud 2D

DIN 835

Threaded rod

DIN 975

Turnbuckle

DIN 1480

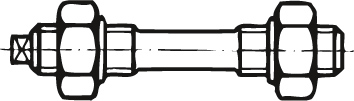

Expansion bolt

DIN 2510

Button-head grease nipple

DIN 3404

Hydraulic grease nipple

DIN71412

T-head bolt

DIN 186

Carriage bolt

DIN 603

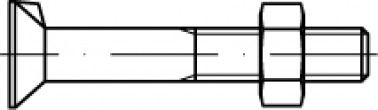

Nib bolt

DIN 604

Wing bolt

DIN 316

Knurled bolt

DIN 464

Threaded rod with trapezium thread

DIN 976

Conical plug

DIN 906

Shoulder plug

DIN 908

Hexagon plug

DIN 910

Clamp half

DIN 3567

U-clamp

DIN 3570

Hanger bolt

Screw hook

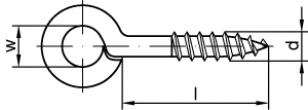

Screw eye

Tailor-made and supplementary services from Triofast

We can shorten your threaded ends, studs and stud bolts to any required length. Please let us know if you require special processing of your fastening article; we will be happy to arrange this for you.

Getting in touch

If you would like to just do some browsing, please take a look at our Product Range Catalogue

Our Product Range Catalogue is a well-organised reference for our comprehensive range of products, and has been a great success for many years. It is clearly arranged on the basis of DIN and ISO numbers.

View online

Quote or questions?
Please contact us

If you have any special requirements or would like advice about appropriate fastening materials, our specialists will be happy to assist you!

Apply for a quote

More of what we do

Our complementary services

Just in time (order picking)

Call us if you are in need of an urgent delivery. We hold a wide-ranging stock of both current and specialist fastening materials. And if the part you require is not in stock, we will either try to source it for you or modify existing components.

Adjustment

The modification of existing fastening materials may mean we need to cut them to the correct size. We also have the necessary tools to enable us to serve you with customised products.
